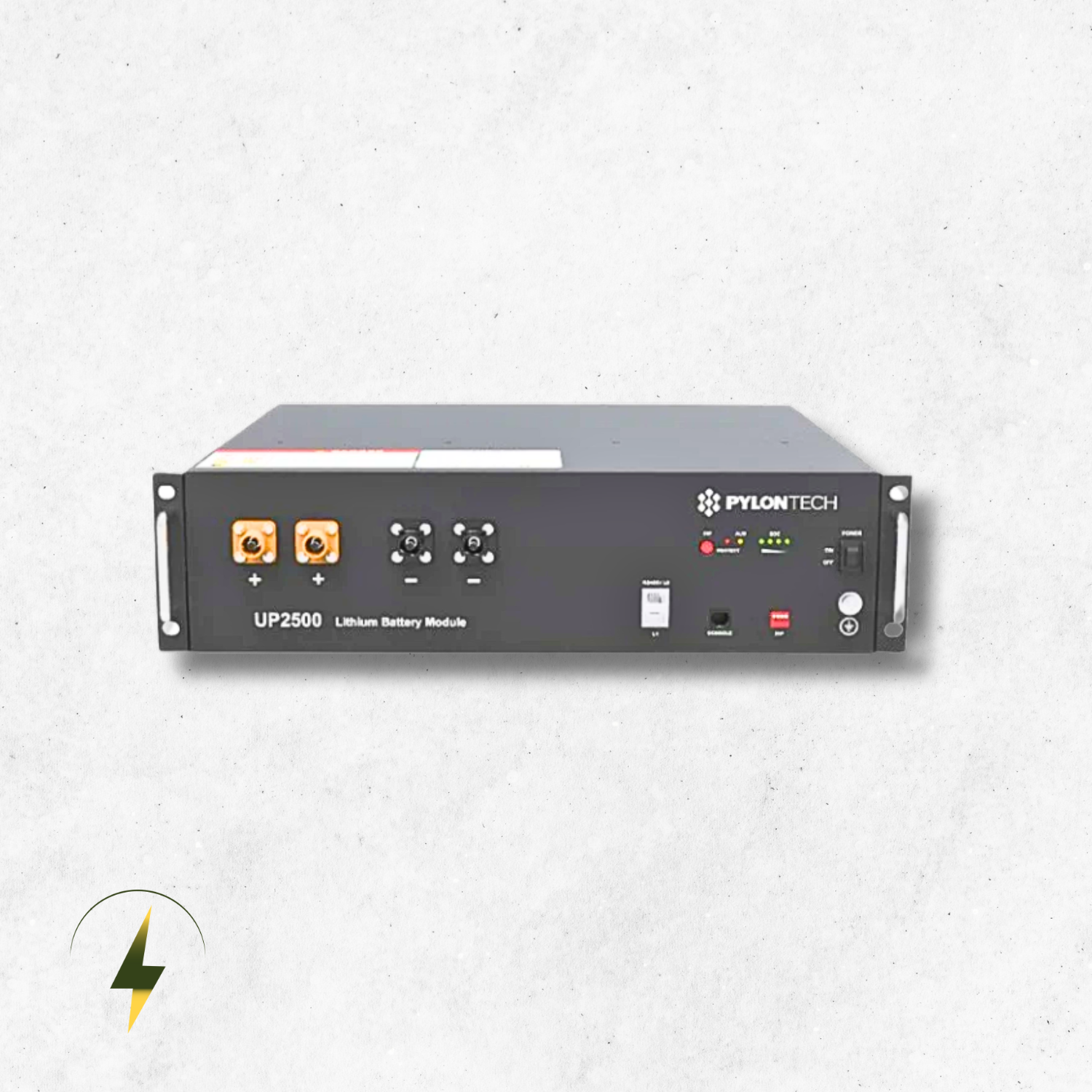

PYLONTECH UP2500 LIFEPO4 24V 2.8KWH LITHIUM-ION BATTERY

PYLONTECH UP2500 LiFePO4 24V 2.8kWh Lithium-Ion Battery

The PYLONTECH UP2500 is a reliable, long-lasting lithium iron phosphate (LiFePO4) battery ideal for residential and commercial energy storage systems. Designed for performance and safety, it offers high efficiency, extended cycle life, and seamless communication with leading inverters.

Key Features & Specifications:

• Battery Type: LiFePO4 (Lithium Iron Phosphate)

• Nominal Voltage: 25.6 V

• Usable Energy: 2.55 kWh

• Nominal Capacity: 2,840 Wh

• Charge Voltage Range: 28.2 – 28.8 V

• Discharge Voltage Range: 23 – 28.8 V

• Continuous Charge/Discharge Current: 56 A

• Communication Port: RS485

• Cycle Life: >6000 cycles @ 25°C

• Designed Lifespan: 10+ years (at 25°C)

Environmental Conditions:

• Operating Temperature Range: -20°C to +60°C

• Humidity Tolerance: 5% to 90% (non-condensing)

• Maximum Installation Altitude: <2000 meters

Dimensions: 442 mm (W) × 420 mm (D) × 119 mm (H)
