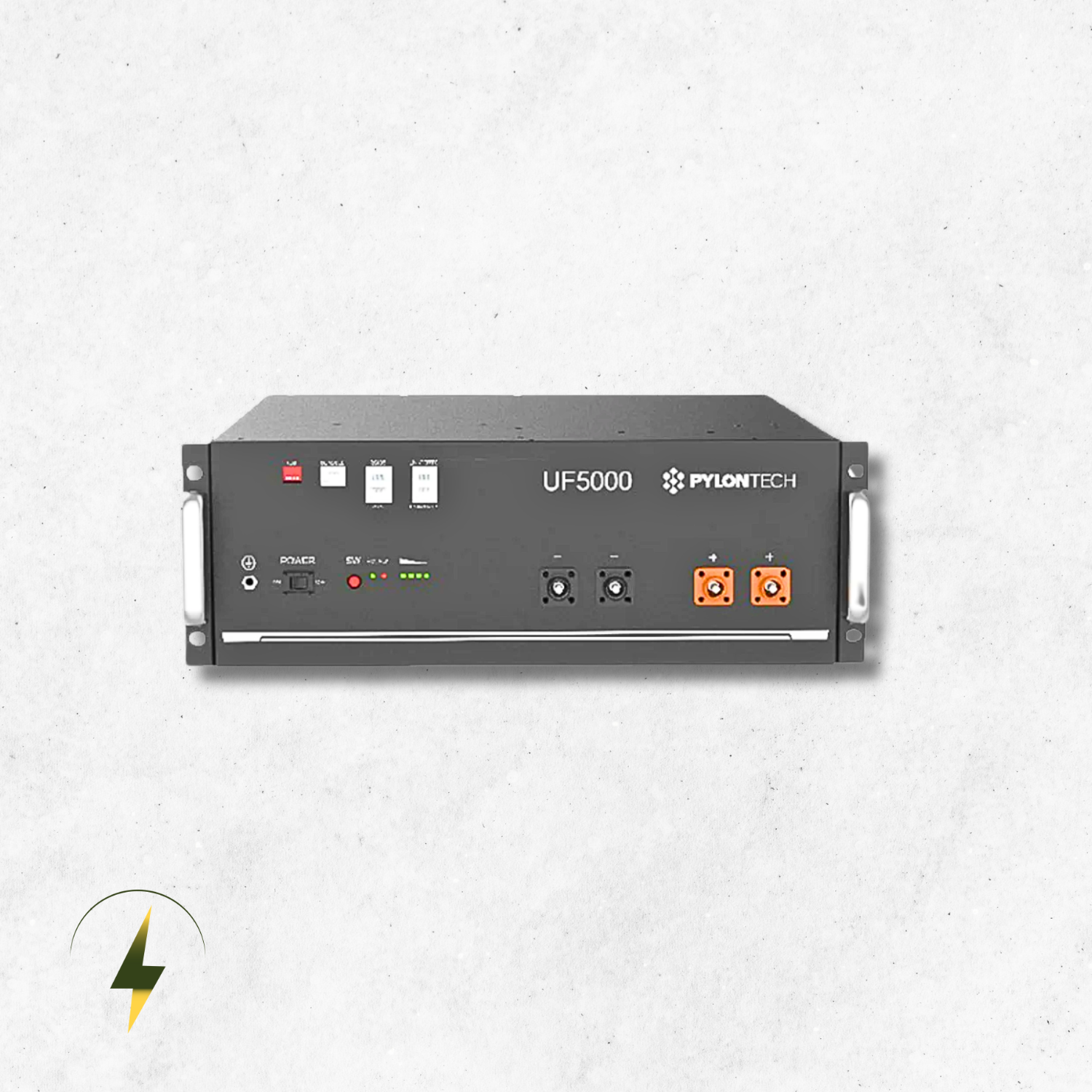

PYLONTECH UF5000 5.12 KWH LITHIUM-ION BATTERY

PYLONTECH UF5000 5.12kWh Lithium-Ion Battery

The PYLONTECH UF5000 is a high-performance lithium-ion battery designed for energy storage systems in residential and commercial applications. With advanced BMS and modular scalability, it ensures reliability, safety, and long cycle life.

Key Features & Specifications:

• Battery Type: Lithium-Ion

• Nominal Voltage: 51.2 V DC

• Nominal Capacity: 5.12 kWh

• Charge Voltage Range: 56 – 56.8 V DC

• Discharge Voltage Range: 45.6 – 56.8 V DC

• Maximum Discharge Current: 100 A

• Communication Ports: RS485, CAN

• System Configuration: Scalable up to 20 units in parallel

• IP Protection Rating: IP20 (suitable for indoor installation)

Environmental Conditions:

• Operating Temperature: -10°C to +55°C

• Storage Temperature: -20°C to +60°C

Dimensions: 442 mm (W) × 452.6 mm (D) × 161 mm (H)
