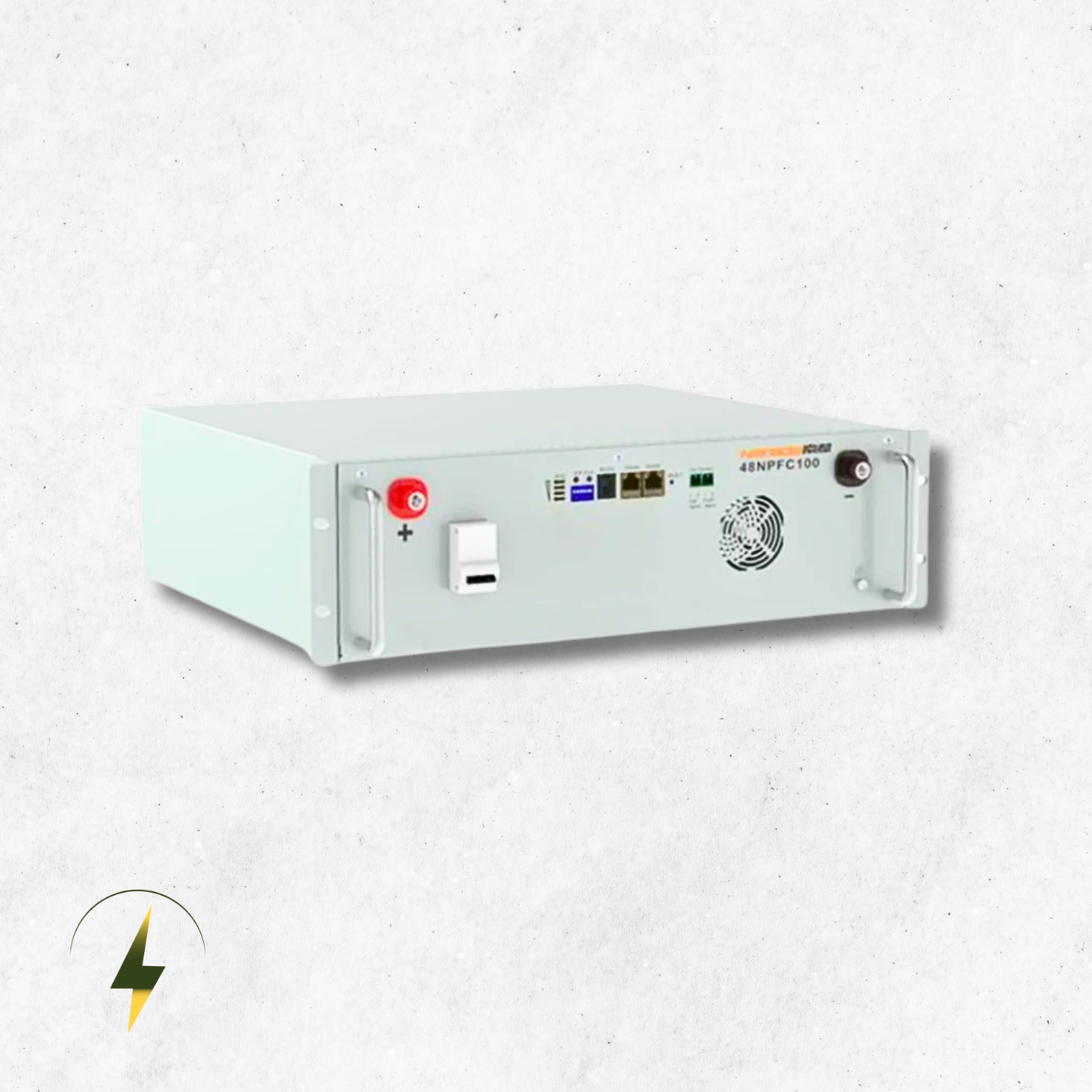

NARADA 48V 100AH 48NPFC100 LITHIUM BATTERY

NARADA 48NPFC100 – 48V 100Ah Lithium-Ion Battery

Experience dependable power storage with the NARADA 48NPFC100, a high-performance 48V lithium-ion battery engineered for energy storage, telecom, solar systems, and backup applications.

Key Features & Specifications:

• Rated Voltage: 48V

• Rated Capacity: 100Ah (Tested at 0.2C to 40.5V @ 25°C)

• Charge Voltage: 54.0V ± 0.5V

• Recommended Charge Current: 20A

• Maximum Charge Current: 100A

• Maximum Discharge Current: 100A

• Discharge End Voltage: 40.5V

• Parallel Support: Up to 8 modules

• Communication Interfaces: RS232, Dual RS485

• Status Indicators: SOC (State of Charge) / ALM (Alarm) / RUN (Running)

• Humidity Range: 5% to 95% (non-condensing)

• Terminal Size: M8 screw type

Temperature Ranges:

• Discharge: -20°C to +60°C (Recommended: +15°C to +35°C)

• Charge: 0°C to +60°C (Recommended: +15°C to +35°C)

• Storage: 0°C to +40°C (Recommended: +15°C to +30°C)

Dimensions: 442.5 mm (W) × 400 mm (D) × 133 mm (H)
