KNOX 20KW LT-G2 PRO ON GRID SOLAR INVERTER

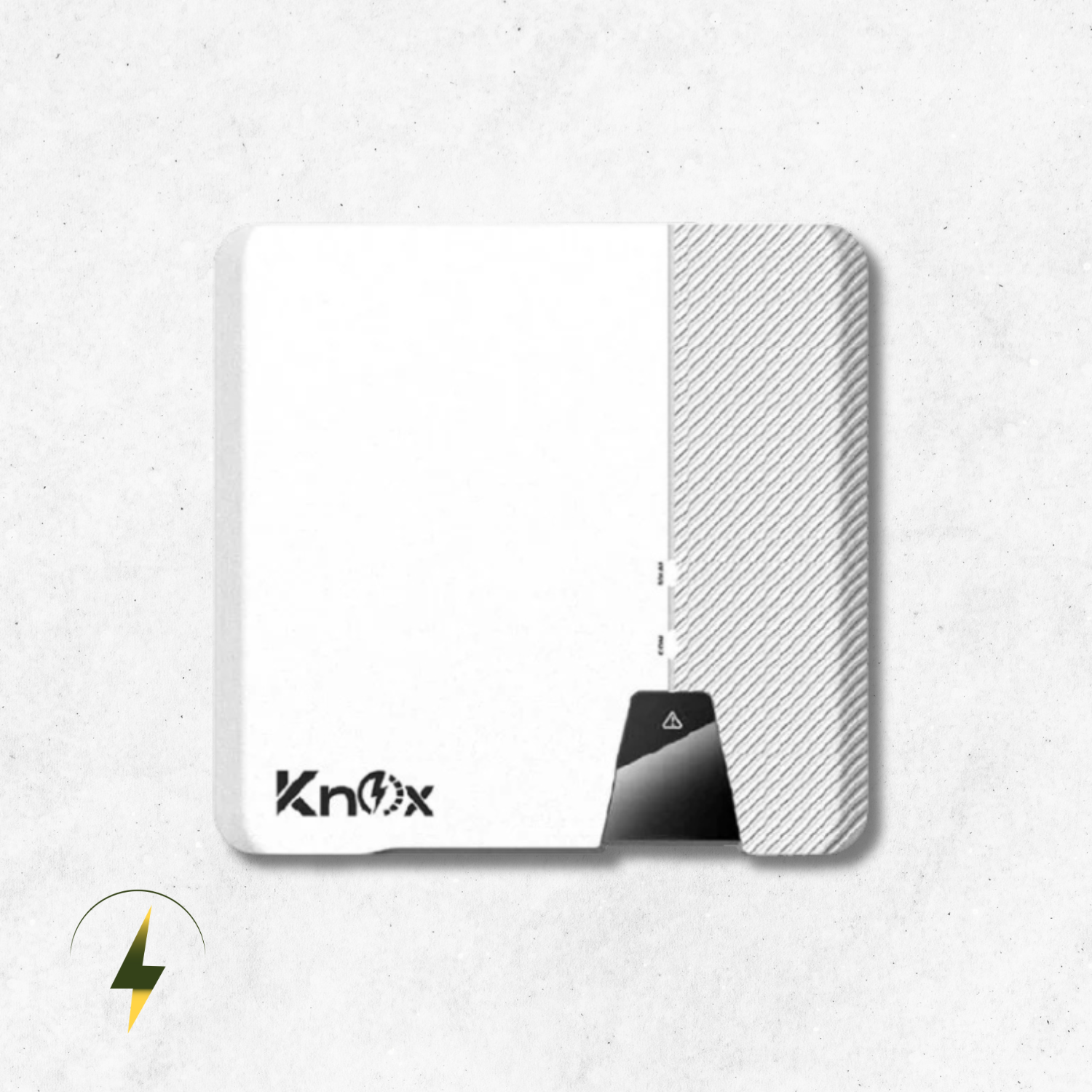

Knox 20kW LT-G2 Pro On-Grid Solar Inverter

The Knox 20kW LT-G2 Pro is a high-performance three-phase on-grid solar inverter, designed for residential, commercial, and light industrial solar power systems. Built to meet international standards, it delivers reliable, efficient, and low-maintenance energy conversion for solar projects in Pakistan's challenging climate.

Product Overview

Whether you're powering a rooftop system, a school, retail store, or a small industrial unit, the Knox 20kW inverter offers an ideal balance of performance, durability, and smart features. With its compact, IP66-rated wall-mountable design, it can handle harsh outdoor conditions while providing seamless energy delivery.

Key Features

High Output & Flexible Performance

• Maximum Power Output: 20,000 watts

• Max DC Input Power: 30,000 Wp (STC)

• Wide MPPT Voltage Range: 150V – 1000V

• Max Input Current: 13A per string (26A total), perfect for bifacial and large-area PV modules

• Oversizing Capability: Supports up to 150% PV array oversizing for optimized system design

Built for Reliability

• Certified to IP66 for dust and water resistance – ideal for outdoor installations in Pakistan’s extreme climates

• Equipped with DC reverse polarity protection, residual current monitoring, and integrated surge protection, ensuring long-term safety and performance

Efficient & Grid-Ready

• Maximum Efficiency: 98.6%

• European Efficiency: 98.2%

• Stable Output Voltage: 220/380/415V AC

• Output Frequency: 50/60 Hz

• Grid Support Standards: IEEE 1547, IEC 62116 – supports stable grid connectivity and anti-islanding protection

Easy Installation & Smart Monitoring

• Comes with Phoenix Contact DC connectors for universal panel compatibility

• Quick installation with standard tools

• Optional Plug & Play Wi-Fi or 4G dongles for internet connectivity

• Monitor system status and performance via the Solplanet mobile app, supporting up to 5 inverters

Why Choose Knox 20kW LT-G2 Pro?

From smart energy monitoring to powerful output, the Knox 20kW LT-G2 Pro offers everything you need for a robust solar setup. It’s designed to deliver uninterrupted clean power, reduce electricity costs, and give you complete control over your solar investment.

Perfect for:

• Residential solar systems

• Retail shops & commercial buildings

• Educational institutions

• Small-scale industrial operations
