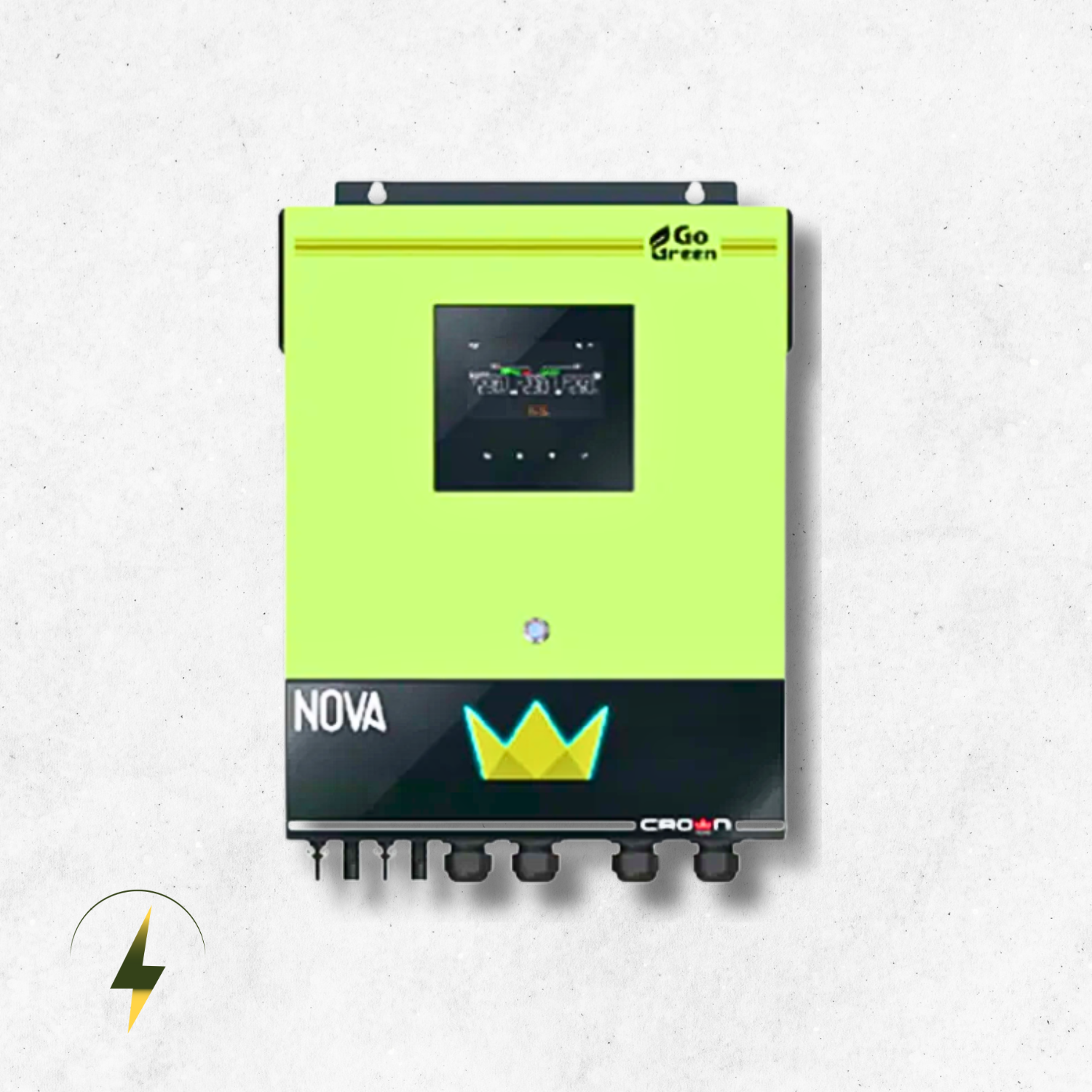

CROWN 8.2KW HYBRID SOLAR INVERTER

CROWN 8.2KW Hybrid Solar Inverter

The CROWN 8.2KW Hybrid Solar Inverter is a high-performance energy solution designed for both residential and commercial applications. It offers seamless integration of solar, battery, and grid power, ensuring stable and efficient energy management.

Technical Specifications:

• Rated Power: 8200VA / 8200W

• Surge Power: 16000VA

• Battery Voltage: 48 VDC

• Floating Charge Voltage: 54 VDC

• Overcharge Protection: 63 VDC

• Frequency Range: 50 Hz / 60 Hz (Auto Sensing)

• Maximum PV Array Power: 12000W (2 × 6000W MPPT inputs)

• Operating Temperature: -10°C to 50°C

• Waveform: Pure Sine Wave

• Voltage Output: 230 VAC

• Transfer Time: 10 ms (for PCs), 20 ms (for home appliances)

Communication Interfaces:

• USB

• RS232 / RS485

• WiFi

• Dry-Contact

Dimensions: 158.4 × 503.6 × 530.8 mm
Inverter Type: Hybrid Solar Inverter

Key Features:

✅ Dual MPPT design for optimal solar input
✅ Fast transfer time for uninterrupted power supply
✅ Pure sine wave output for sensitive electronics
✅ Smart connectivity options including WiFi
✅ Ideal for backup systems, self-consumption, and energy optimization

The CROWN 8.2KW Hybrid Inverter delivers powerful and smart energy conversion, ensuring uninterrupted and efficient operation across a wide range of applications.
